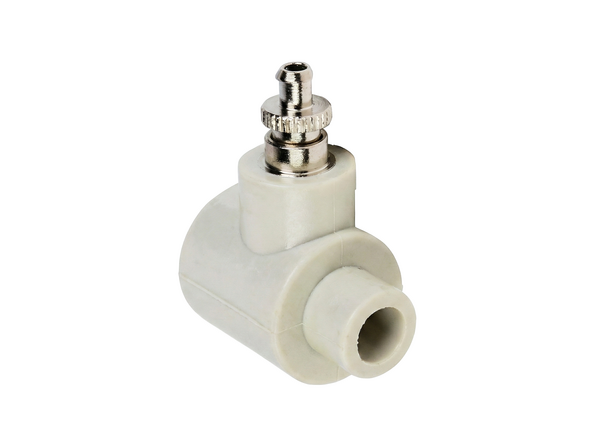

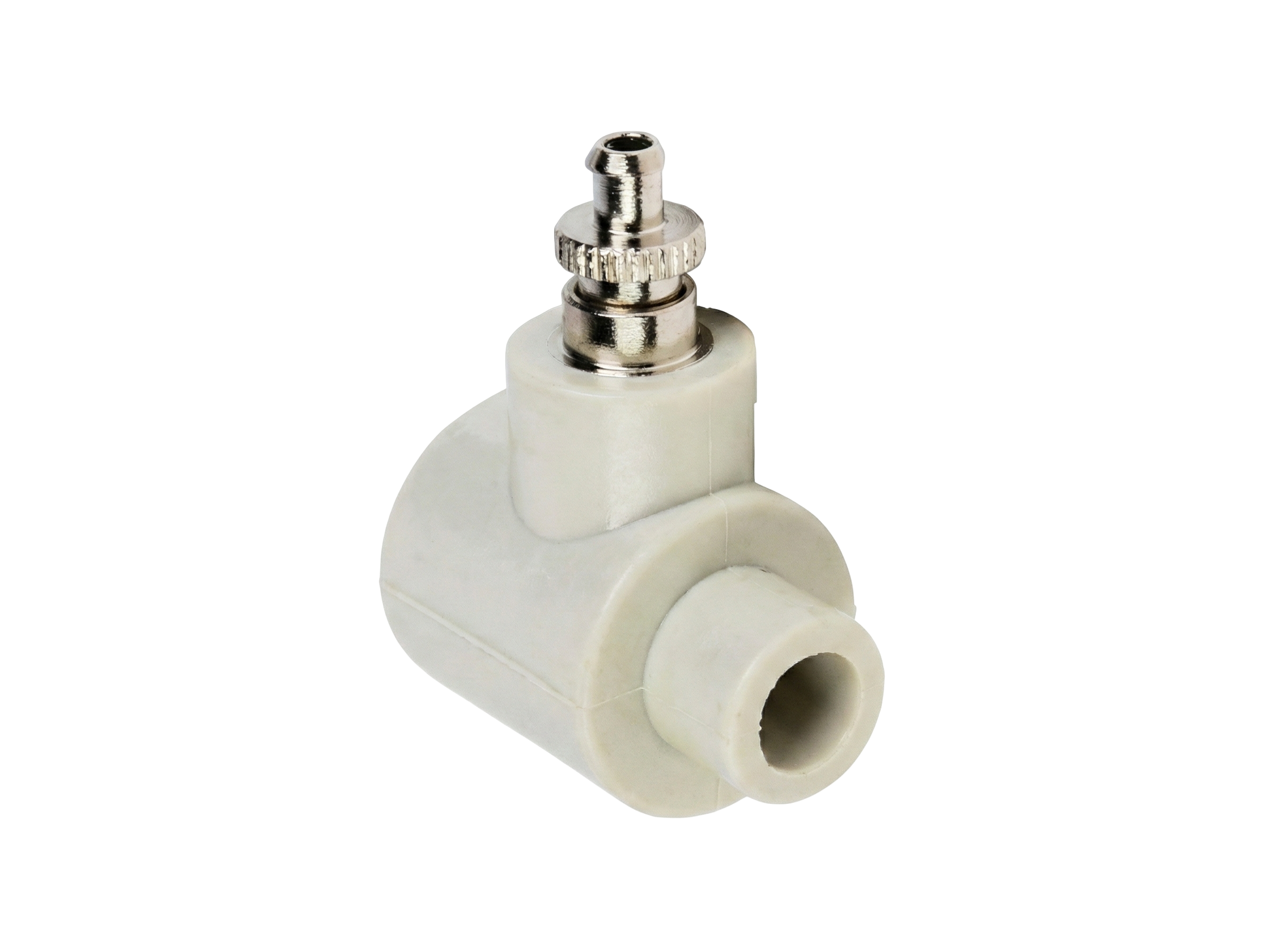

Socket With Drain Valve

Socket With Drain Valve (Fittings - combined fittings) - Combined fittings - 06.2020 I, 06.2525 I, 06.3232 I (fittings).

Add to list

Sanitas
Price

on request!

Catalog Fittings
Category Combined fittings
Manufacturer Sanitas
colour
  • Complete product catalog

    Catalog of products

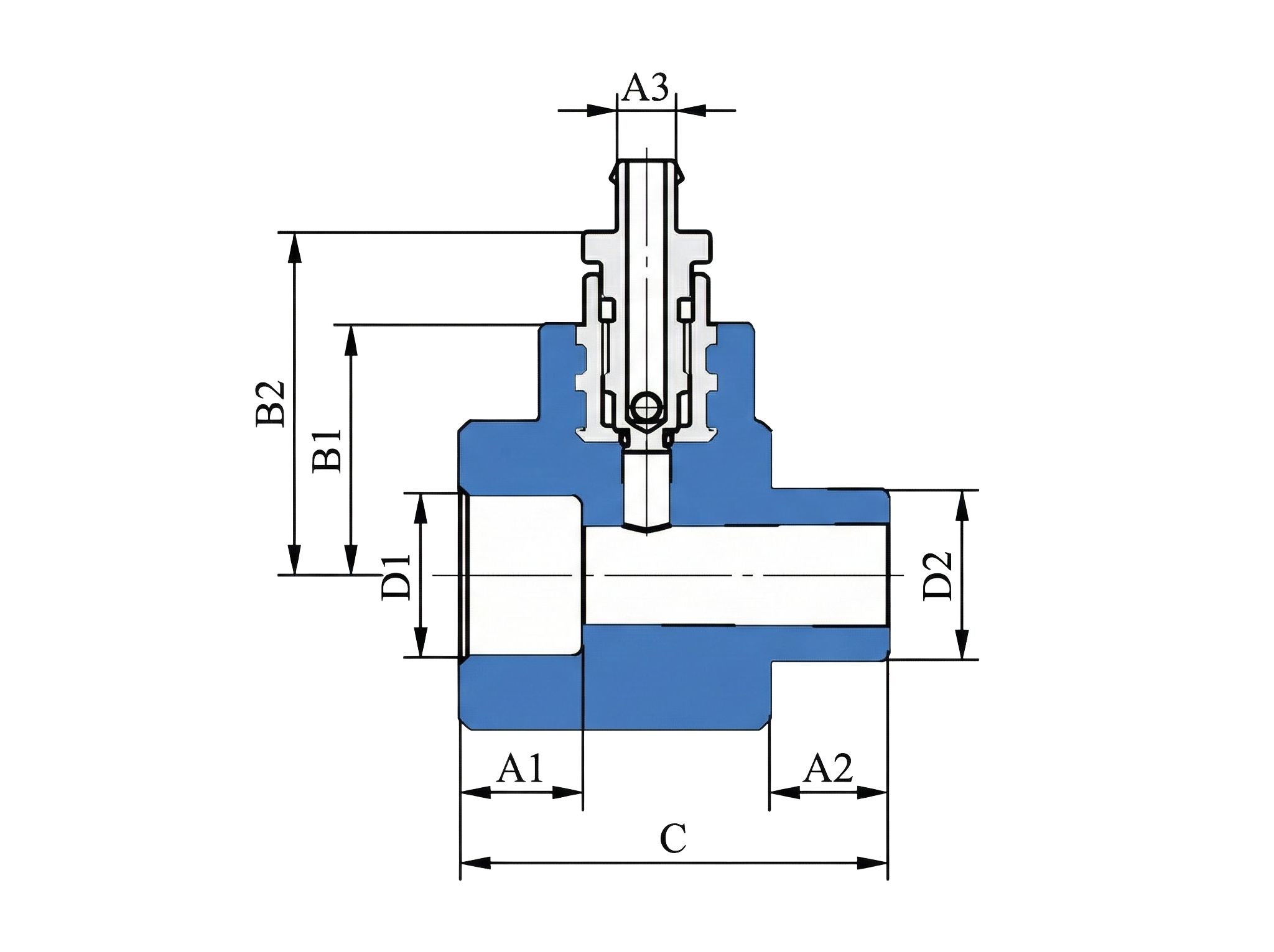

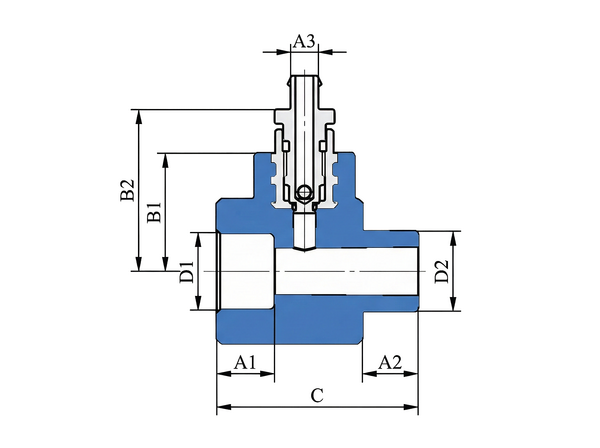

Combined fittings - 06.2020 I, 06.2525 I, 06.3232 I

D1
[mm]
D2
[mm]
A1
[mm]
A2
[mm]
A3
[mm]
B1
[mm]
B2
[mm]
C
[mm]
20 20 14,5 14 7 29,5 50 50,5 06.2020 I 10 0.063
25 25 16 16 7 29,5 50 52,5 06.2525 I 5 0.061
32 32 18 18 7 33 53,5 57 06.3232 I 5 0.073


A - average welding depth,   B - distance from centre,   C - total length,   D - welding diameter
G, V - thread size,   R - pitch,   t - wall thickness
- product number,   - little unit (pc),   - big unit (pc),   - weight (kg),   - colour
