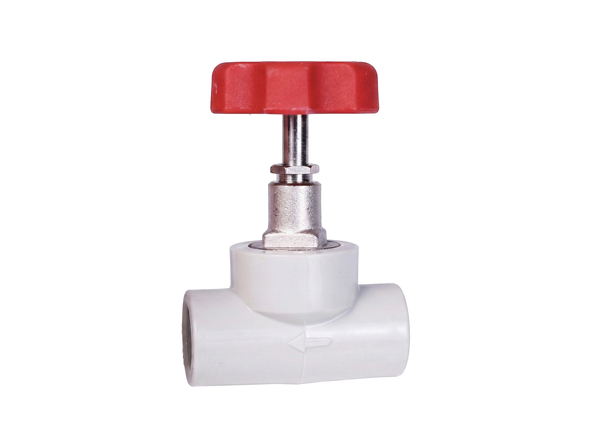

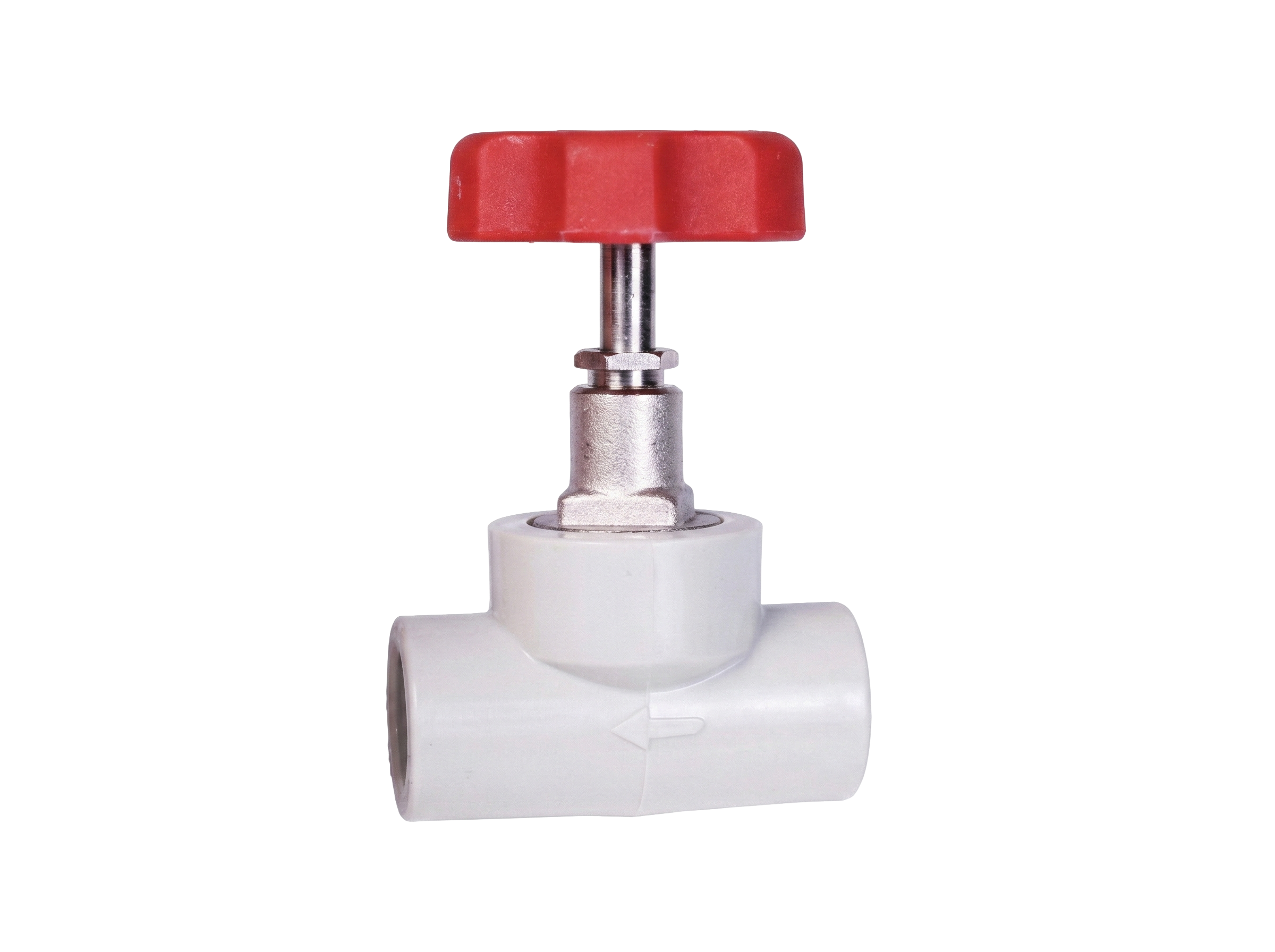

Threaded Valve

Threaded Valve (Plastic valves - valves) - Valves - 65.2020, 65.2525, 65.3232, 65.4040, 65.5050 (plastic valves).

Add to list

Sanitas
Price

on request!

Catalog Plastic valves
Category Valves
Manufacturer Sanitas
colour
  • Complete product catalog

    Catalog of products

Valves - 65.2020, 65.2525, 65.3232, 65.4040, 65.5050

D
[mm]
A
[mm]
B
[mm]
C
[mm]
20 14,5 77 64 65.2020 10 50 0.153
25 16 86 78 65.2525 10 50 0.220
32 18 97 82 65.3232 10 30 0.315
40 20,5 110 100 65.4040 5 0.563
50 23 120 117 65.5050 2 0.835

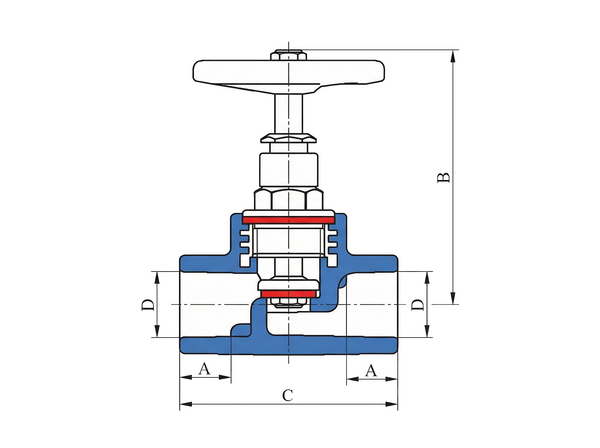

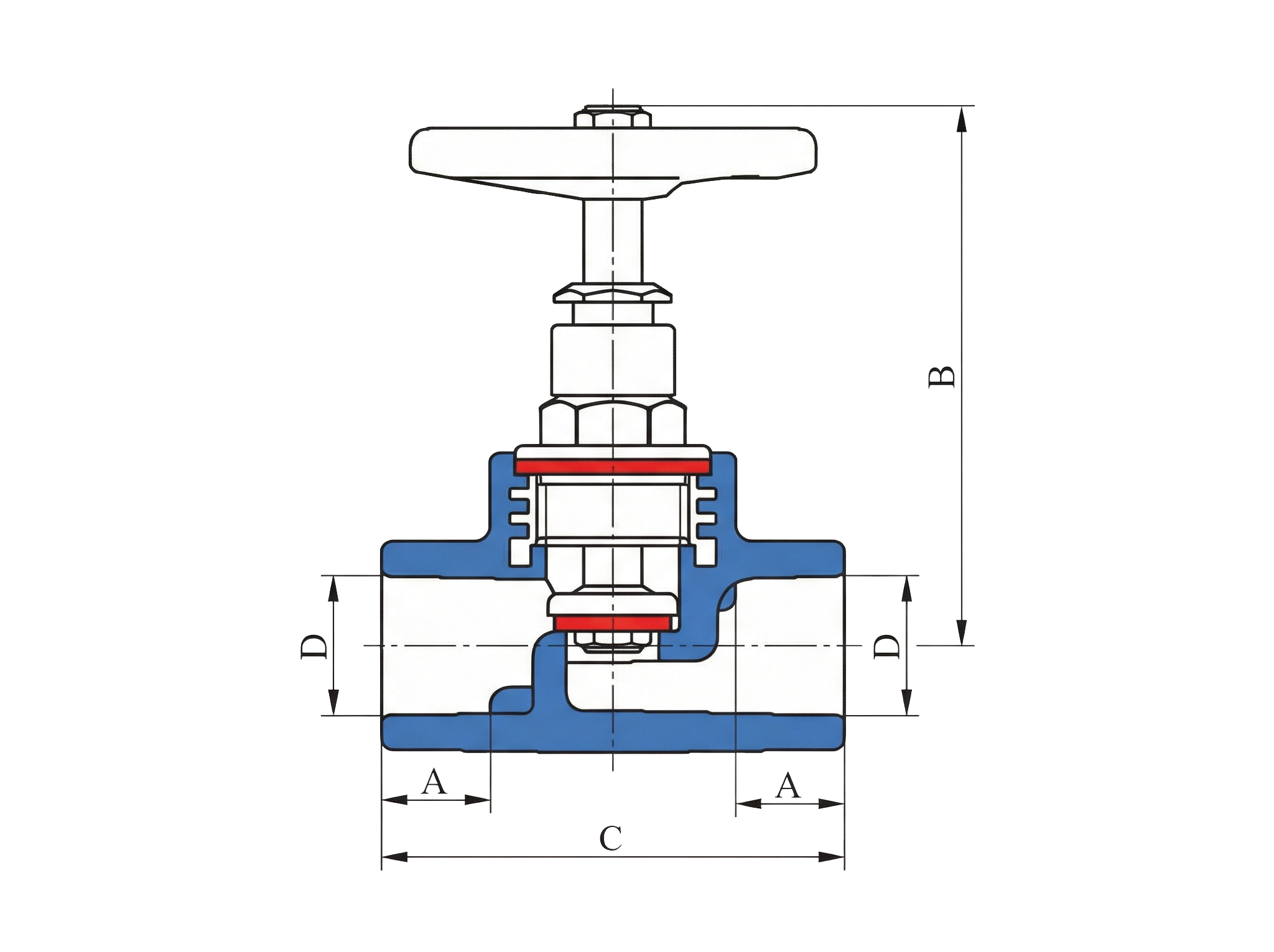

A - average welding depth,   B - distance from centre,   C - total length,   D - welding diameter
G, V - thread size,   R - pitch,   t - wall thickness
- product number,   - little unit (pc),   - big unit (pc),   - weight (kg),   - colour
