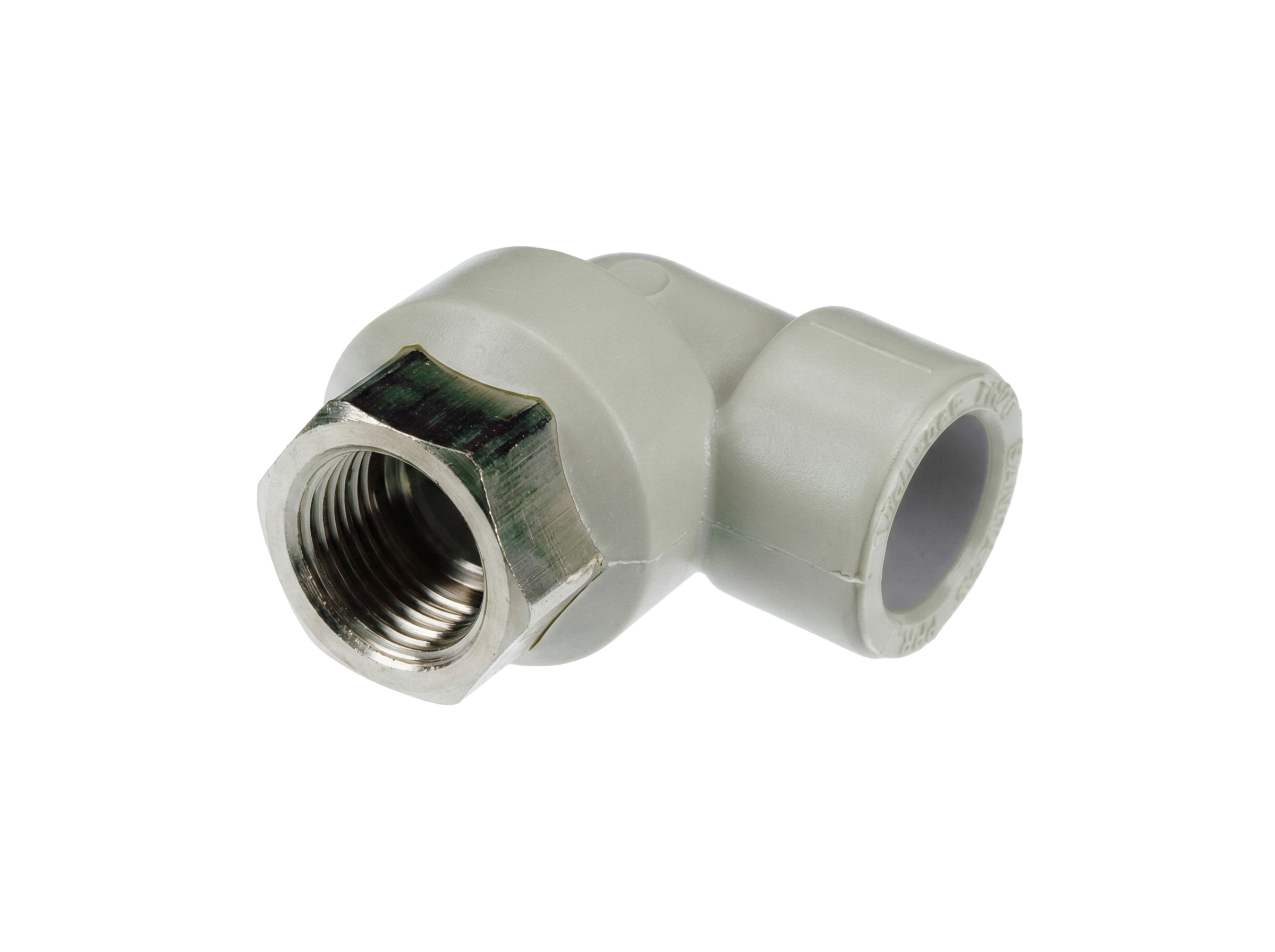

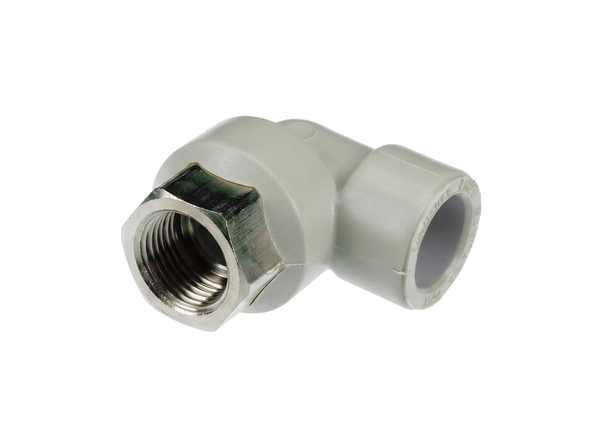

Adaptor Elbow 90° - Female

Adaptor Elbow 90° - Female (Fittings - combined fittings) - Combined fittings - 26.2020, 26.2020 B, 26.2025, 26.2520 , 26.2525, 26.2525 B, 26.3232 (fittings).

Add to list

Sanitas
Price

on request!

Catalog Fittings
Category Combined fittings
Manufacturer Sanitas
colour
  • Complete product catalog

    Catalog of products

Combined fittings - 26.2020, 26.2020 B, 26.2025, 26.2520 , 26.2525, 26.2525 B, 26.3232

D
[mm]
G
[„]
A
[mm]
B1
[mm]
B2
[mm]
20 1/2 14,5 34 36 26.2020 20 200 0.085
20 1/2 14,5 34 36 26.2020 B 20 200 0.03
20 3/4 14,5 37 40 26.2025 20 100 0.114
25 1/2 16 37 37 26.2520 20 100 0.087
25 3/4 16 37 40 26.2525 20 100 0.112
25 3/4 16 37 40 26.2525 B 20 100 0.042
32 1 18 43 43 26.3232 10 50 0.158

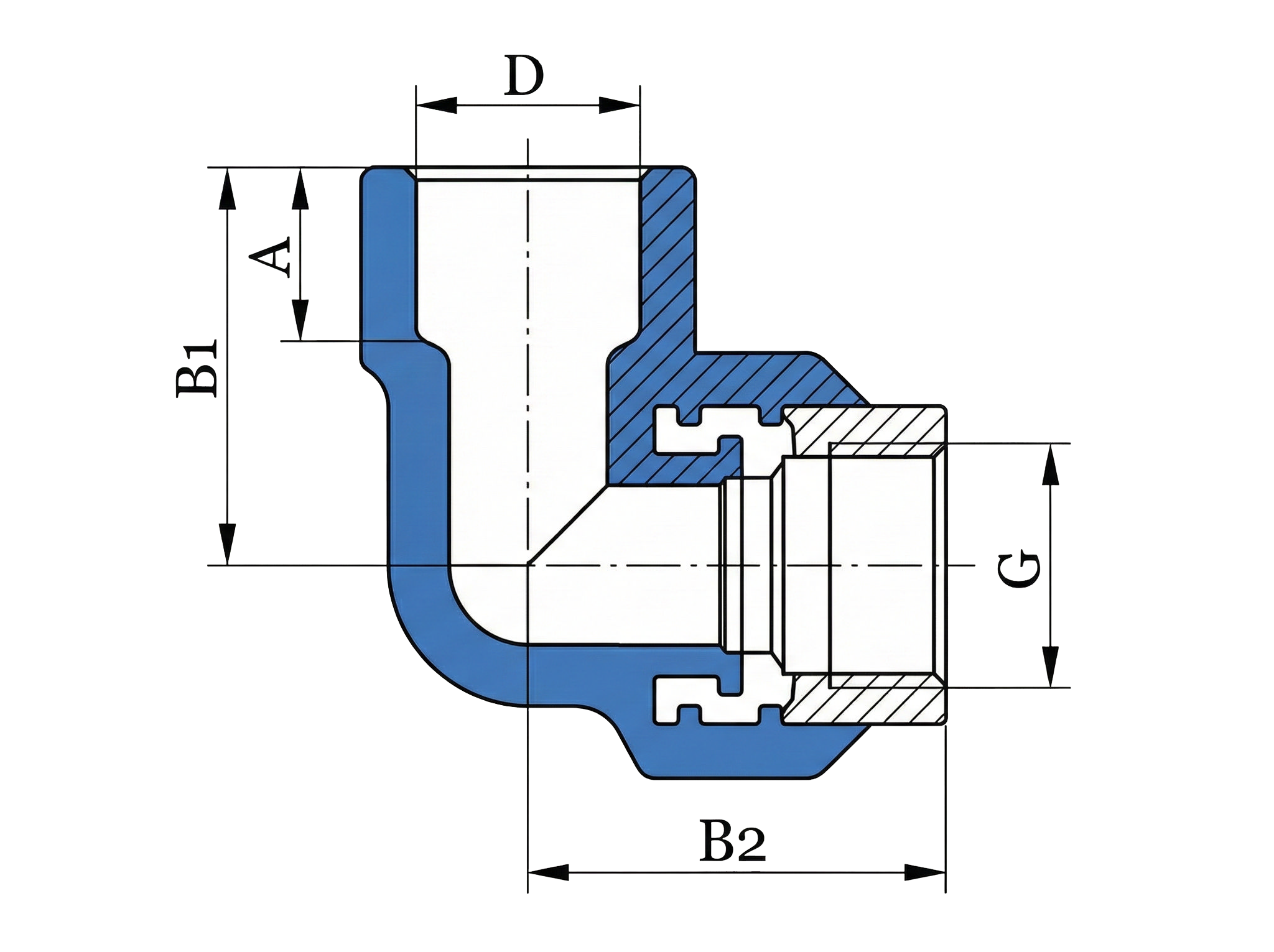

A - average welding depth,   B - distance from centre,   C - total length,   D - welding diameter
G, V - thread size,   R - pitch,   t - wall thickness
- product number,   - little unit (pc),   - big unit (pc),   - weight (kg),   - colour
