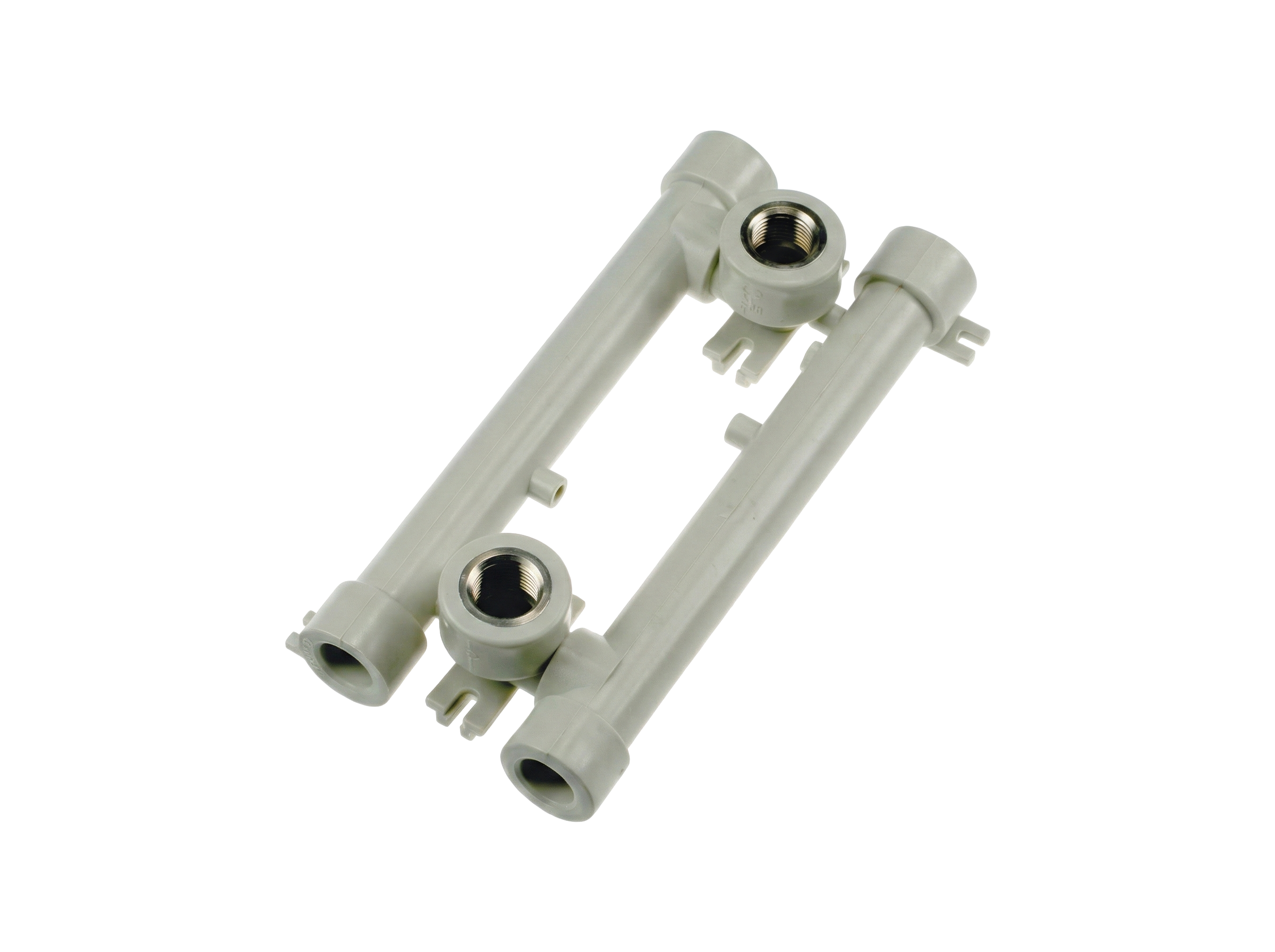

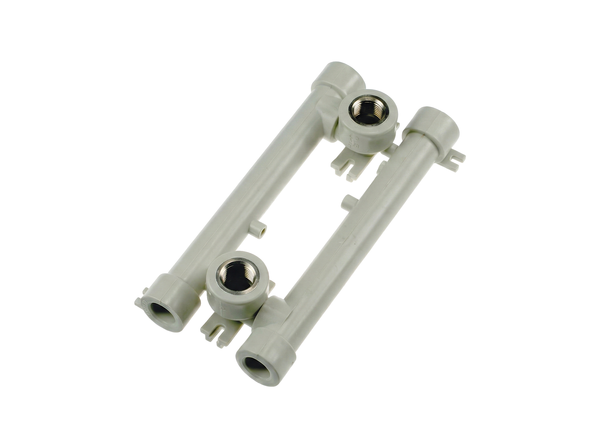

Wall Complet
Wall Complet (Fittings - combined fittings) - Combined fittings - 109.2020 (fittings).
Combined fittings - 109.2020
| D [mm] |
G [„] |
A [mm] |
B1 [mm] |
B2 [mm] |
C [mm] |
R [mm] |
 |
 |
 |
|
| 20 | 1/2 | 14,5 | 54 | 100/150 | 218 | 148/198 | 109.2020 | 1 | 30 | 0.272 |

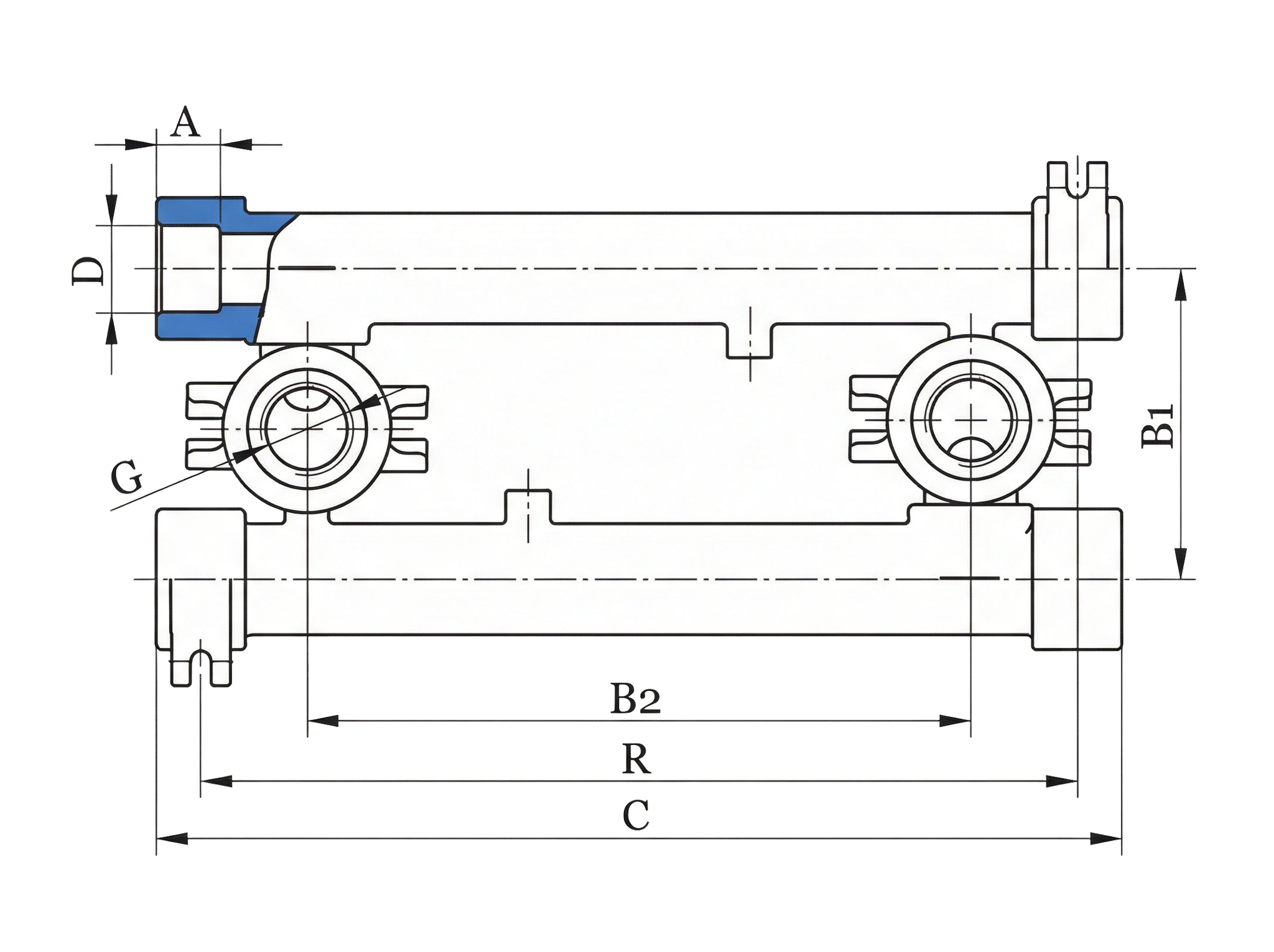

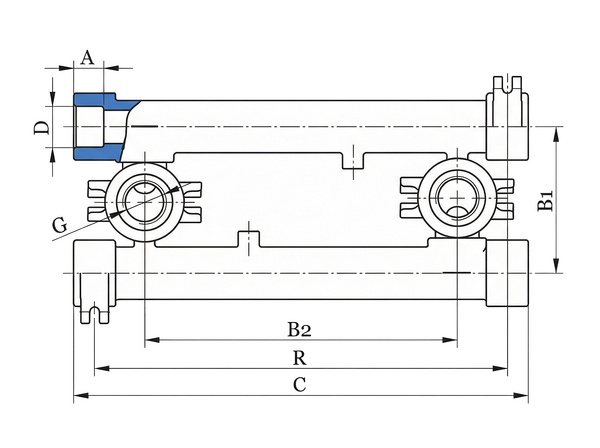

A - average welding depth,
B - distance from centre,
C - total length,
D - welding diameter
G, V - thread size,
R - pitch,
t - wall thickness
- product number,
- little unit (pc),
- big unit (pc),
- weight (kg),
- colour
