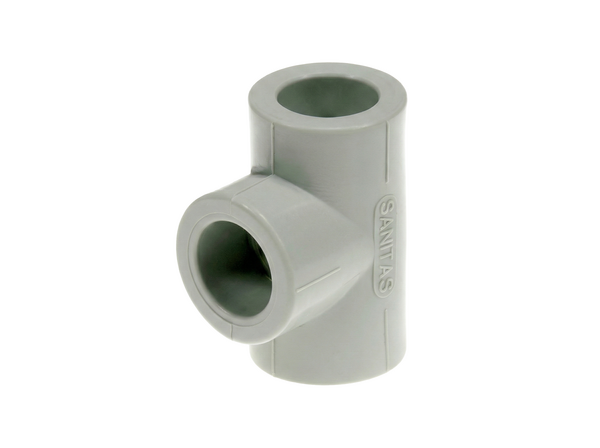

Tee

Plastic fittings - 04.2020, 04.2525, 04.3232, 04.4040, 04.5050, 04.6363

D [mm]	A [mm]	B [mm]	C [mm]
20	14,5	27	52	04.2020	50	400	0.024
25	16	30	60	04.2525	50	200	0.033
32	18	35	70	04.3232	20	100	0.051
40	20,5	41,5	83	04.4040	10	50	0.086
50	23,5	49,5	99	04.5050	5	30	0.151
63	27	59,8	118	04.6363	5	15	0.310

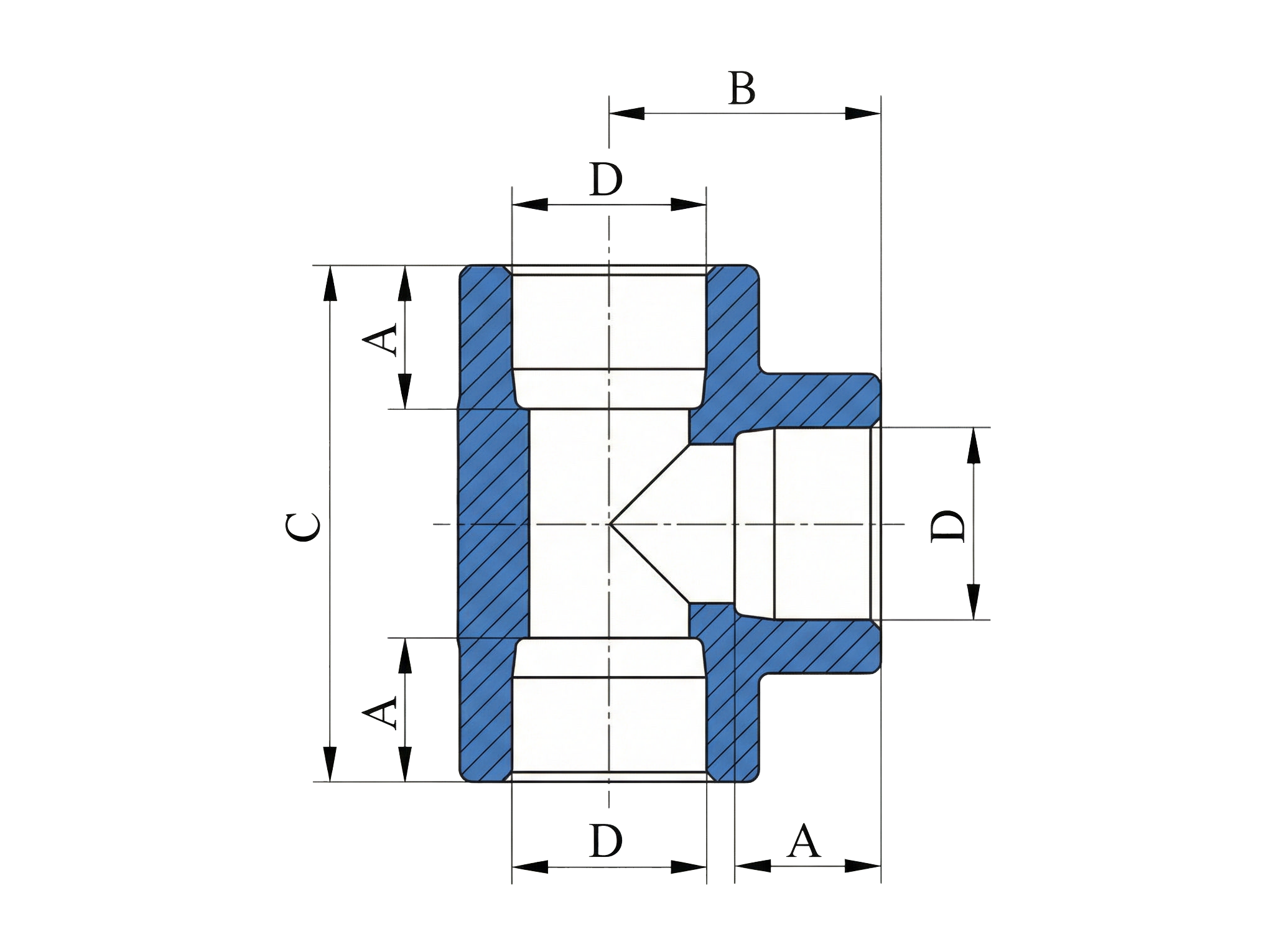

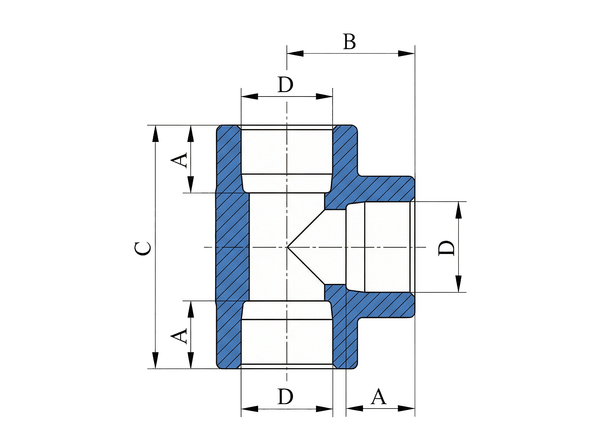

A - average welding depth,   B - distance from centre,   C - total length,   D - welding diameter
G, V - thread size,   R - pitch,   t - wall thickness
- product number,   - little unit (pc),   - big unit (pc),   - weight (kg),   - colour
