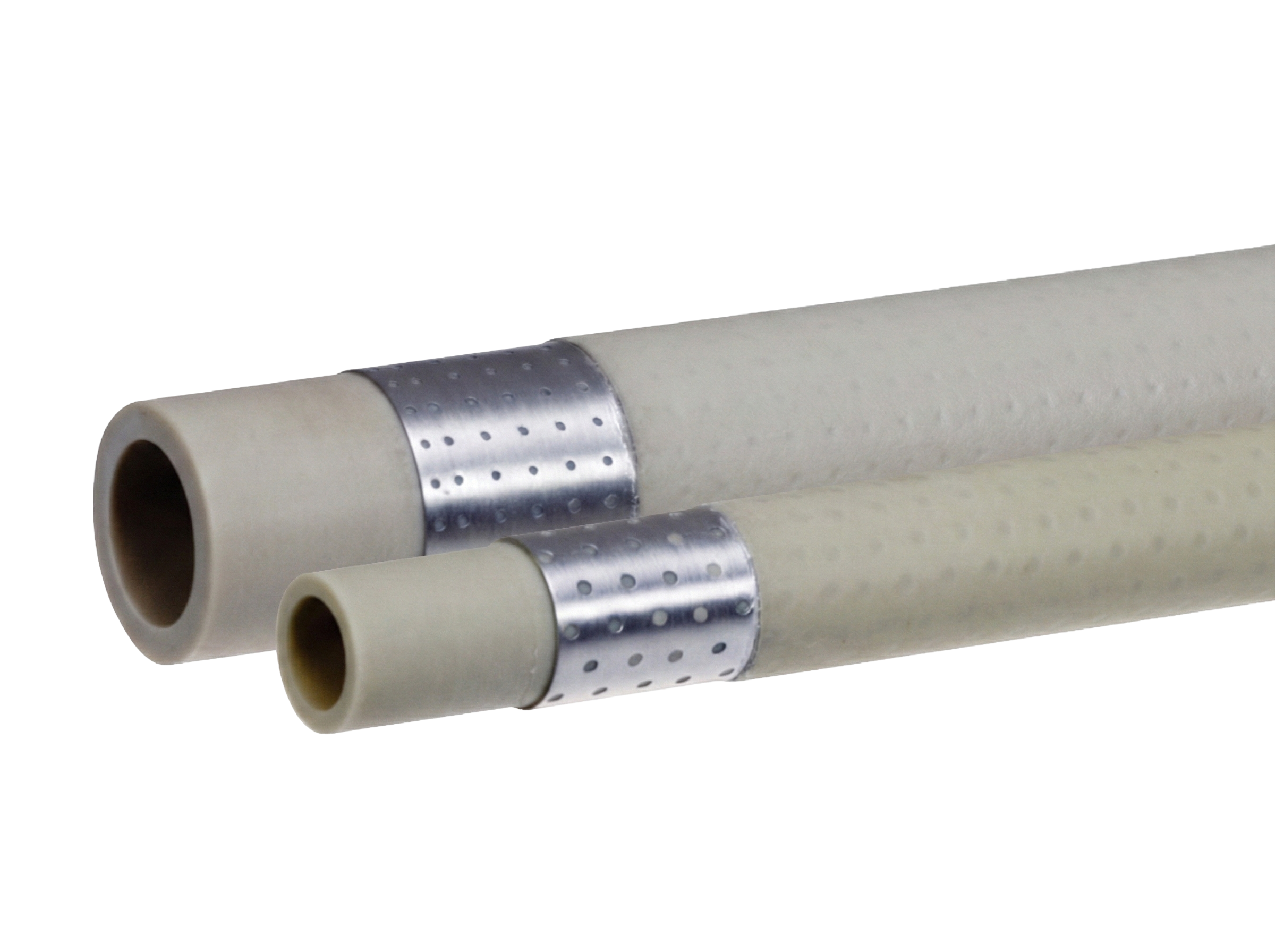

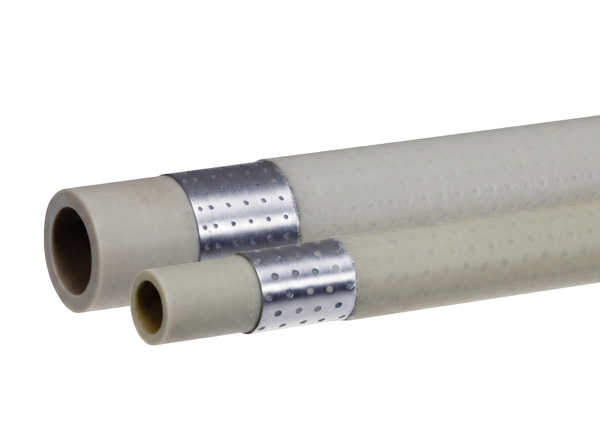

Pipe STABI S2,5 (PN20)
Pipe STABI S2,5 (PN20) (Pipes - multilayer pipes) STABI RÚRY PP-R/AL/PP-R (hliníková fólia) - Multilayer pipes - 01.2020S, 01.2520S, 01.3220S, 01.4020S, 01.5020S, 01.6320S (pipes).
Multilayer pipes - 01.2020S, 01.2520S, 01.3220S, 01.4020S, 01.5020S, 01.6320S
| D [mm] |
t [mm] |
t1 [mm] |
C [mm] |
V [„] |
 |
 |
 |
| 20 | 2,8 | 3,0 | 4 | 1/2 | 01.2020S | 100 m | 0,208 |
| 25 | 3,5 | 3,7 | 4 | 3/4 | 01.2520S | 60 m | 0,305 |
| 32 | 4,4 | 4,7 | 4 | 1 | 01.3220S | 40 m | 0,468 |
| 40 | 5,5 | 5,8 | 4 | 5/4 | 01.4020S | 28 m | 0,692 |
| 50 | 6,9 | 7,1 | 4 | 6/4 | 01.5020S | 16 m | 1,048 |
| 63 | 8,6 | 8,8 | 4 | 2 | 01.6320S | 12 m | 1,555 |

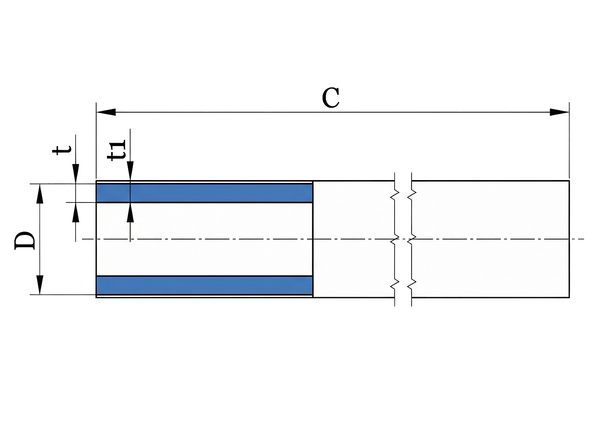

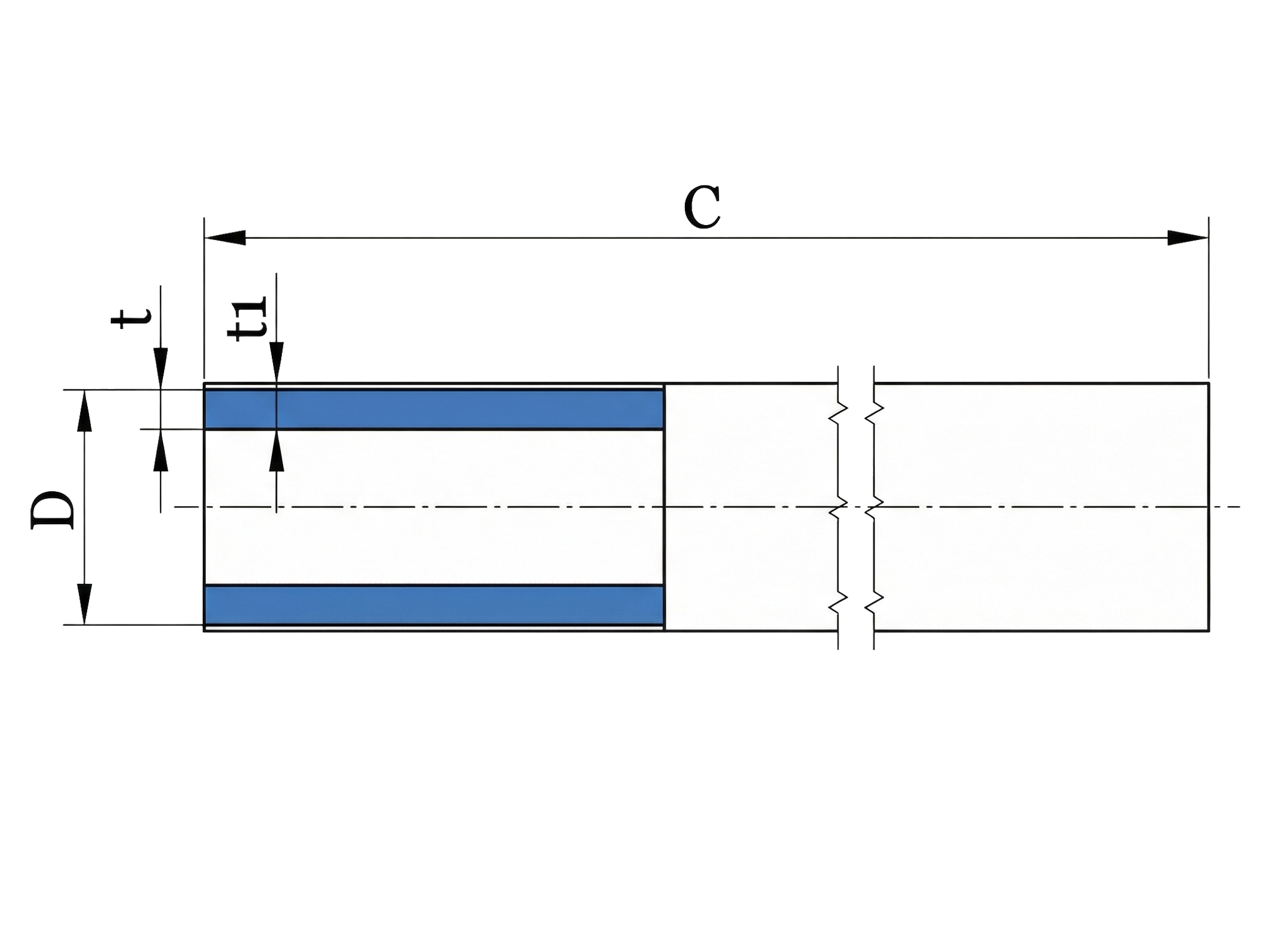

A - average welding depth,
B - distance from centre,
C - total length,
D - welding diameter
G, V - thread size,
R - pitch,
t - wall thickness
- product number,
- little unit (pc),
- big unit (pc),
- weight (kg),
- colour
Technical specification
Name
STABI RÚRY PP-R/AL/PP-R (hliníková fólia)
