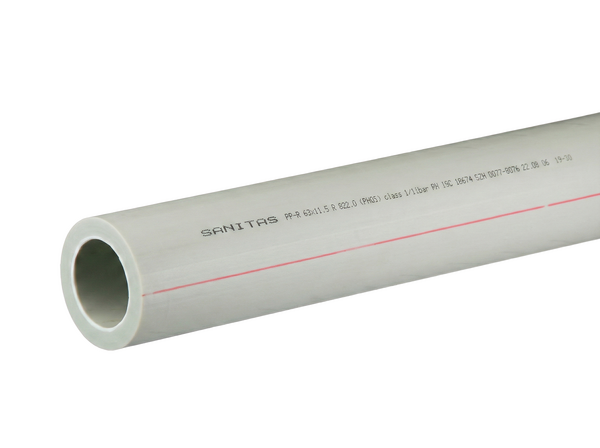

Pipe S2,5 (PN 20)

Standard pipes - 01.1620, 01.2020, 01.2520, 01.3220, 01.4020, 01.5020, 01.6320, 01.7520

D [mm]	t [mm]	C [mm]	V [„]
16	2,7	4	3/8	01.1620	160 m	0.110
20	3,4	4	1/2	01.2020	100 m	0.172
25	4,2	4	3/4	01.2520	60 m	0.266
32	5,4	4	1	01.3220	40 m	0.434
40	6,7	4	5/4	01.4020	28 m	0.671
50	8,4	4	6/4	01.5020	16 m	1.050
63	10,5	4	2	01.6320	12 m	1.663
75	12,5	4	2 1/2	01.7520	8 m	2.300

A - average welding depth,   B - distance from centre,   C - total length,   D - welding diameter
G, V - thread size,   R - pitch,   t - wall thickness
- product number,   - little unit (pc),   - big unit (pc),   - weight (kg),   - colour
