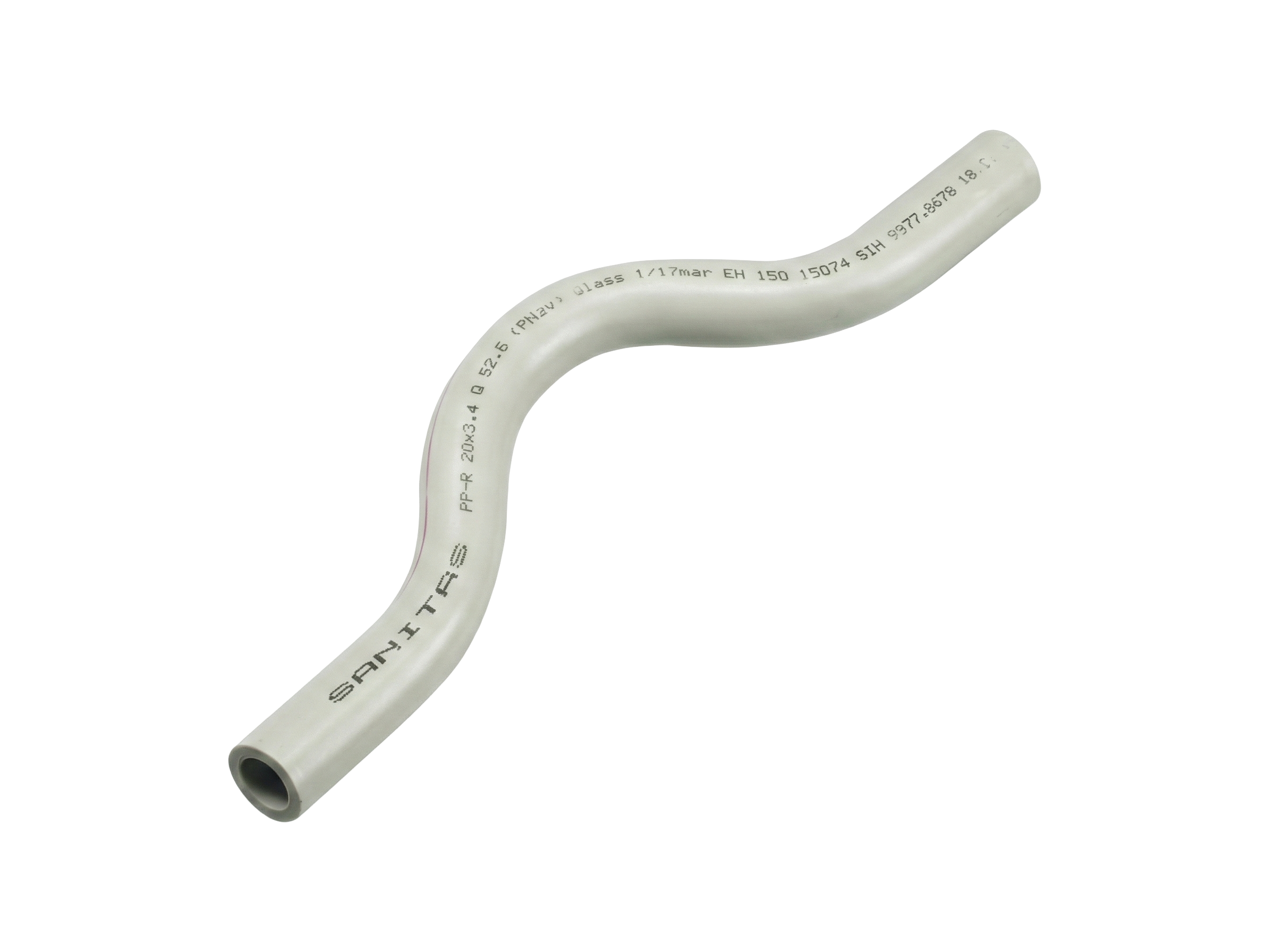

Transfer Bends

Plastic fittings - 73.2016, 73.2020, 73.2516, 73.2520, 73.3216, 73.3220, 73.4016, 73.4020

D [mm]	B [mm]	C [mm]	V [„]
20	65	250	1/2	73.2016	10	200	0.040
20	65	250	1/2	73.2020	10	200	0.045
25	70	255	3/4	73.2516	10	100	0.060
25	70	255	3/4	73.2520	10	100	0.065
32	87	280	1	73.3216	5	50	0.100
32	87	280	1	73.3220	5	50	0.120
40	85	280	5/4	73.4016	5	20	0.160
40	85	280	5/4	73.4020	5	20	0.185

A - average welding depth,   B - distance from centre,   C - total length,   D - welding diameter
G, V - thread size,   R - pitch,   t - wall thickness
- product number,   - little unit (pc),   - big unit (pc),   - weight (kg),   - colour
