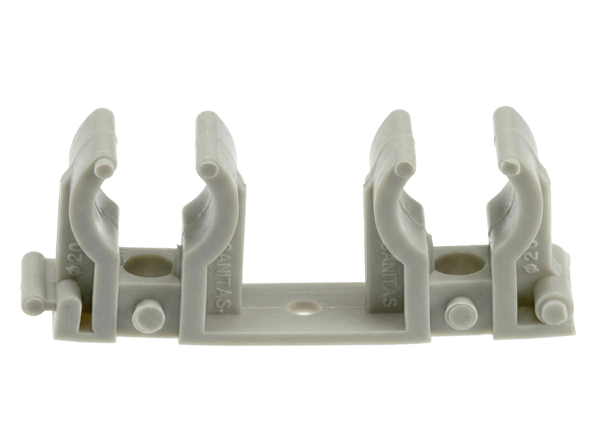

Pipe Clips Double
Pipe Clips Double (Fittings - plastic fittings) - Plastic fittings - 70.2020, 70.2525 (fittings).
Plastic fittings - 70.2020, 70.2525

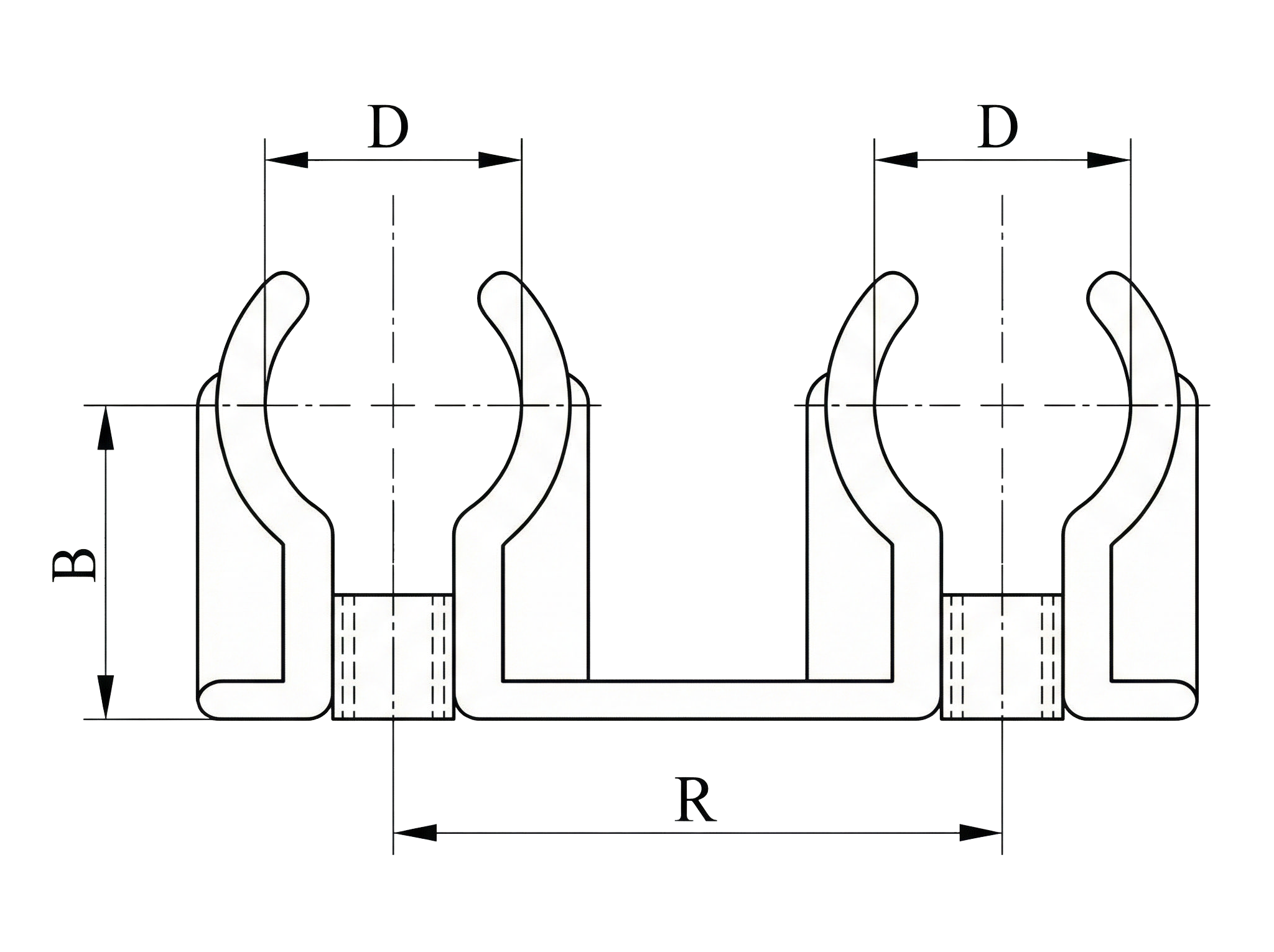

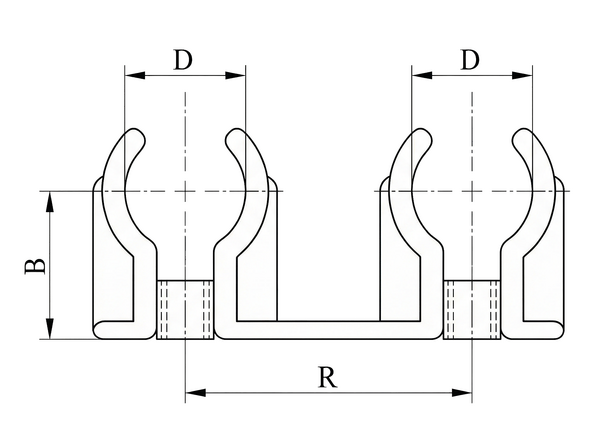

| D [mm] |
B [mm] |
R [mm] |
 |
 |
 |
 |
| 20 | 25,5 | 50 | 70.2020 | 10 | 500 | 0.013 |
| 25 | 27 | 50 | 70.2525 | 10 | 500 | 0.015 |
A - average welding depth,
B - distance from centre,
C - total length,
D - welding diameter
G, V - thread size,
R - pitch,
t - wall thickness
- product number,
- little unit (pc),
- big unit (pc),
- weight (kg),
- colour
