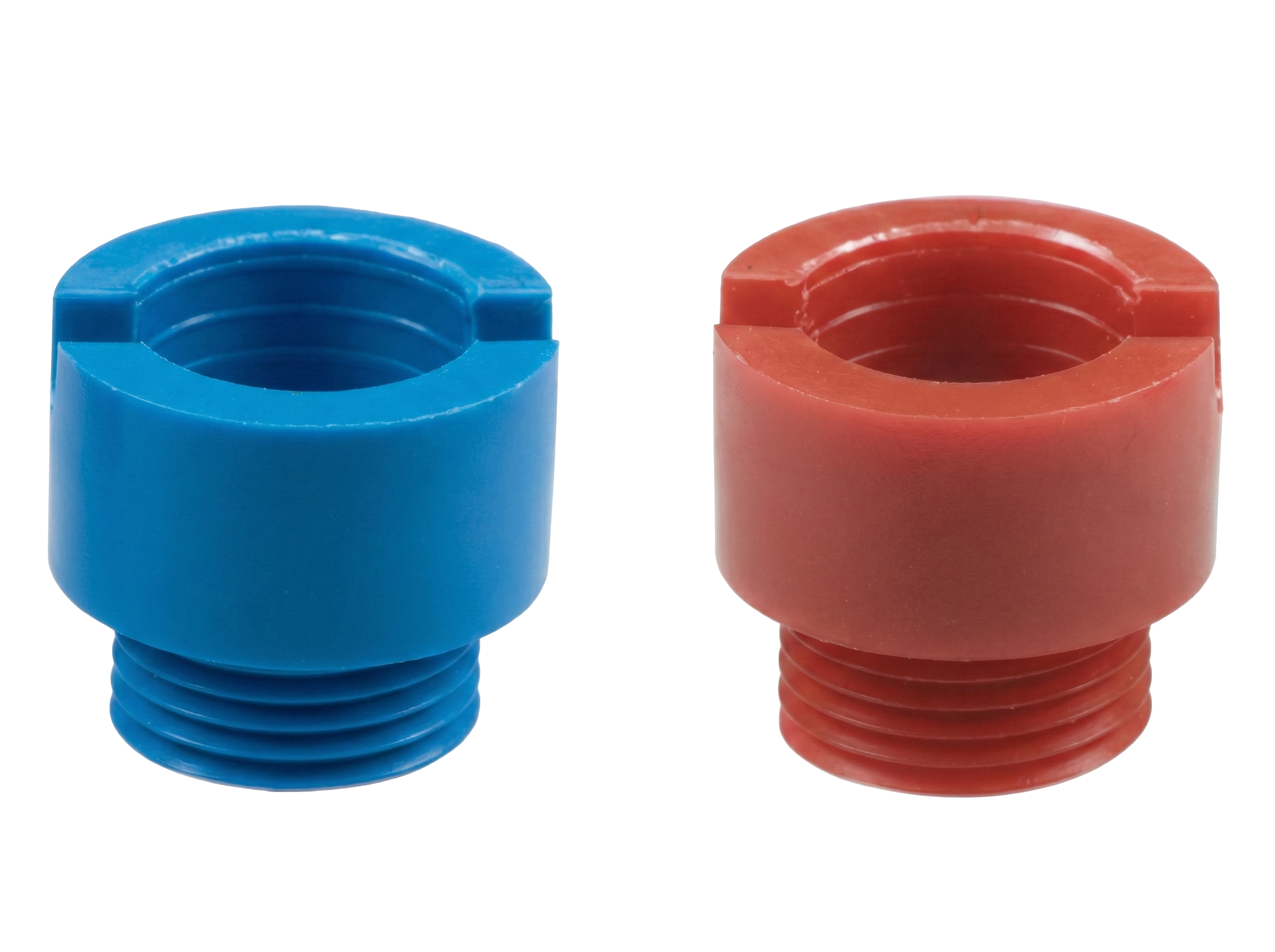

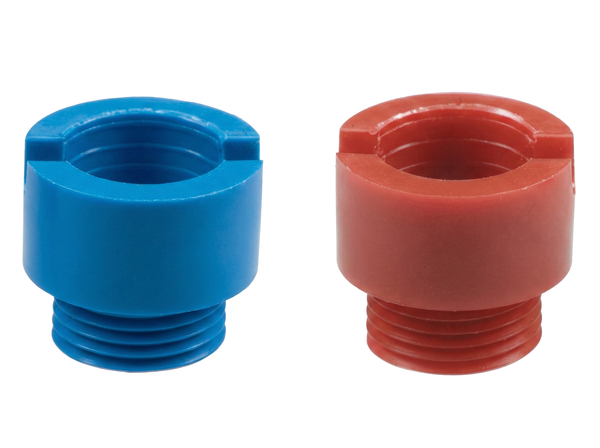

End plug for wall-mounted elbow (short)
End plug for wall-mounted elbow (short) (Fittings - plastic fittings) Krátka - Plastic fittings - 10.2020, 10.2030 (fittings).
Plastic fittings - 10.2020, 10.2030

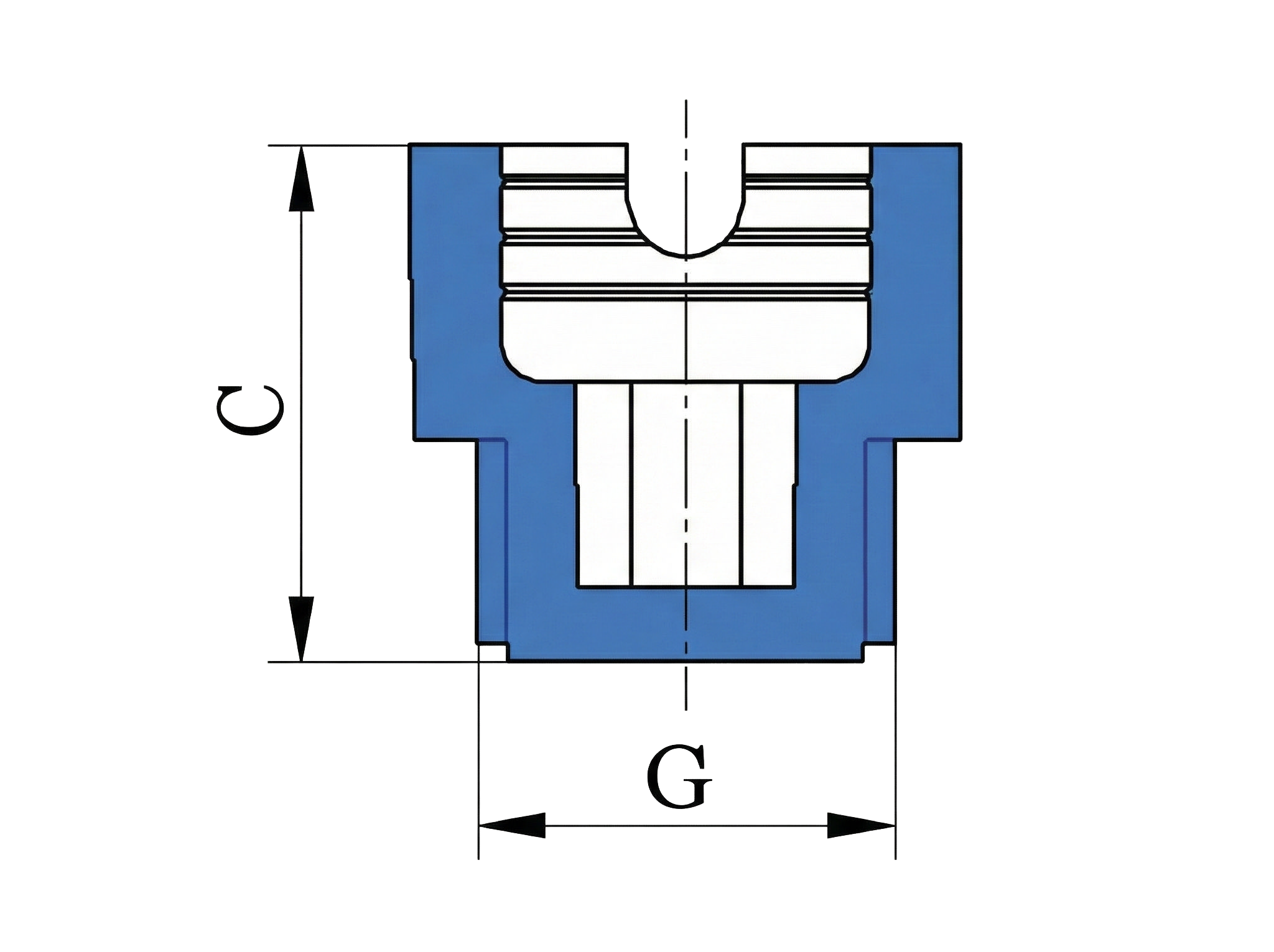

| G [„] |
C [mm] |
 |
 |
 |
 |
 |
| 1/2 | 28 |  |
10.2020 | 20 | 200 | 0.007 |
| 1/2 | 28 |  |
10.2030 | 20 | 200 | 0.007 |
A - average welding depth,
B - distance from centre,
C - total length,
D - welding diameter
G, V - thread size,
R - pitch,
t - wall thickness
- product number,
- little unit (pc),
- big unit (pc),
- weight (kg),
- colour
