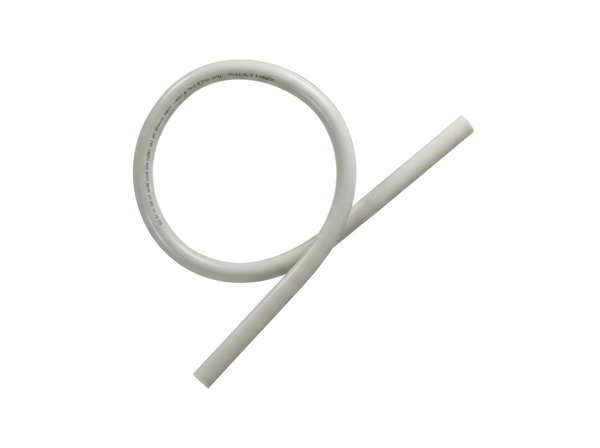

Compensation Piece
Compensation Piece (Fittings - plastic fittings) - Plastic fittings - 74.2020, 74.2520, 74.3220, 74.4020 (fittings).
Plastic fittings - 74.2020, 74.2520, 74.3220, 74.4020

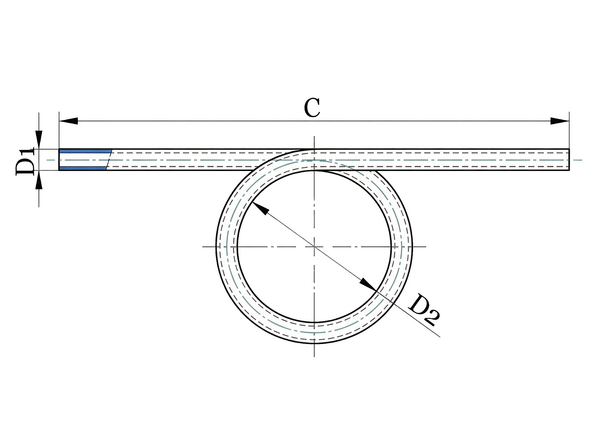

| D1 [mm] |
D2 [mm] |
C [mm] |
V [„] |
 |
 |
 |
| 20 | 145 | 480 | 1/2 | 74.2020 | 10 | 0.172 |
| 25 | 150 | 480 | 3/4 | 74.2520 | 10 | 0.270 |
| 32 | 155 | 480 | 1 | 74.3220 | 5 | 0.464 |
| 40 | 160 | 480 | 5/4 | 74.4020 | 3 | 0.738 |
A - average welding depth,
B - distance from centre,
C - total length,
D - welding diameter
G, V - thread size,
R - pitch,
t - wall thickness
- product number,
- little unit (pc),
- big unit (pc),
- weight (kg),
- colour
